E.H. Wachs Split Frames are the world's most versatile and comprehensive line of clamshell style, field portable pipe cutting, and beveling machines on the market today. Designed to cut, bevel, single point, counterbore, and face flanges on pipe ranging from .5 to 120 inches O.D. (DN15-3000) on most wall thicknesses and materials, E.H.Wachs has a split frame to fit most pipes, tubes, or pressure vessel sizes.

Wachs Split Frames are offered in three size ranges:

  • Wachs SDSF (Small Diameter Split Frames) for cutting, beveling, and counterboring pipe and tubing from .5 inch - 6-inches O.D. (DN15-150)
  • DynaPrep MDSF Modular Design Split Frames. Our largest and most versatile portable pipe-cutting machine line's applications include cutting, beveling, facing, counterboring, and flange facing. Available in sixteen standard models for nominal pipe sizes ranging from 2in - 72in O.D. (DN50-1800).
  • Wachs LDSF (Large Diameter Split Frame) is built for cutting, beveling, counterboring, and flange facing on pipes, valves, fittings, pressure vessels, and heat exchangers. The Wachs LDSF is available in four standard sizes, ranging from 60 inches to 120 inches O.D. (DN1500-DN3000).

What is a Split Frame?

Wachs Split Frames are named for their ability to split in half and mount around the outside of inline piping. They can also be used for pipe end weld preparation and flange facing where they slide over the end of a pipe or pressure vessel. All Wachs Split Frames are built to last a lifetime and engineered to apply precise, consistently square cuts and bevels ideal for welding from the first cut to the last.

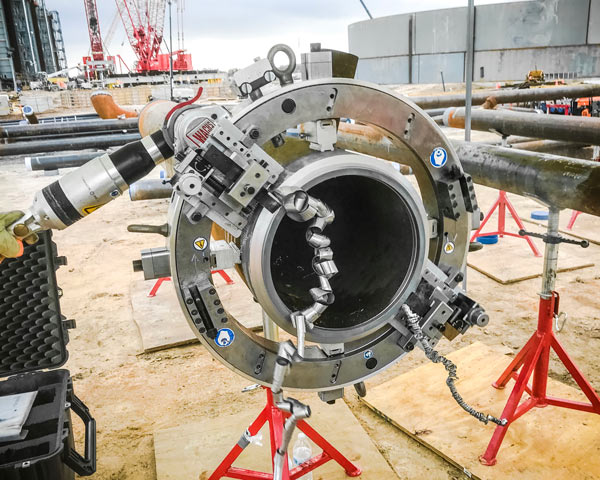

24 inch DynaPrep MDSF Split FrameSplit Frame - A field-portable clamshell-style pipe cutting and beveling machine tool (lathe) that splits to mount to in-line pipes, tubes, and flanges. Structurally it features a fixed rigid frame or ring for support and mounting, and a rotating ring for attaching machining modules and tooling. Both rings split to allow the whole machine to clamp or hinge around a pipe, tube, or flange's outside diameter (O.D.), prior to machining. During the machining process, the machine tool modules attached to the rotating ring perform specific functions (cutting, beveling, resurfacing, facing, or counterboring), while the fixed, rigid frame the rotating ring travels around stays securely mounted to the pipe, tube, or flange.
Also known as: Clamshell, Ring Lathe, Pipe Cutter, Pipe Beveler, Pipe Cutting Machine

In regard to cutting applications, all DynaPrep pipe weld prep machine tools perform inline pipe cutting, can cut off pipe ends, and sever corroded and damaged pipe. A pipe cutter by nature, these pipe-cutting machines can also simultaneously cut and bevel inline pipe and perform work in pipeline applications with normal and heavy wall pipe. For heavy wall pipes, additional modules are available. Also, each machine can bevel inline pipe and bevel pipe ends and act as a pipe end prep beveling machine tool, and can chamfer inline pipe and bevel pipelines. In certain applications where a compound bevel is needed, the DynaPrep can act as a compound beveler, beveling with form tools or single-point machining complex preps such as j-prep bevels.

Moving beyond cut and bevel capability, each DynaPrep MDSF can be equipped with modules for flange facing which will convert the DynaPrep from a pipe cutter into a flange facer that can face and resurface flanges. As a flange resurfacing machine, the DynaPrep MDSF can perform smooth resurfacing, raised face resurfacing, record grooving, and RTJ ring groove creation and resurfacing.

When the need arises to counterbore pipe, the DynaPrep series of rotating lathe machine tools can be outfitted with counterbore modules, enabling counterboring and deep counterbore machining of pipe ends creating desired lands for welding.
