ECC External Casing Cutter

ECC External Casing Cutter

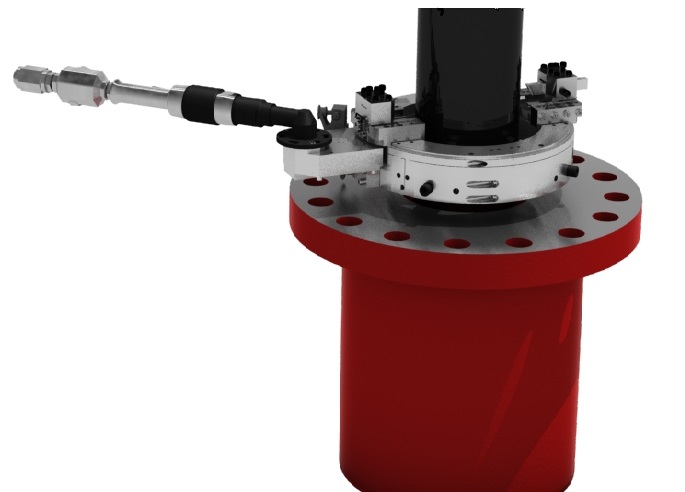

ECC External Casing Cutter utilizes Wachs split frame technology to cut a wide range of casing conductors externally above the wellhead. The ECC split frame mounts around the exposed casing O.D. above the wellhead and simultaneously cuts and chamfers. Ring sizes are available for most grades and weights of the exposed external casing (or drive pipe/conductor) up to a 26” (660mm) diameter, with the ECC 814 AIR being the most common.

The ECC is based on Wachs proven split frame portable machine tool and takes advantage of the wide range of standard Genuine Wachs Tooling, requiring minimal axial and radial clearances. The ECC is available with pneumatic or hydraulic drive options. Remote handheld controls are optionally available for pneumatic powered machines.

Features:
  • External casing (drive pipe/conductor) cutting and beveling up to a 26” (660mm) diameter
  • Utilizes standard Wachs Genuine Tooling for severing and chamfering
  • Based on DynaPrep MDSF Split Frame technology
  • Requires minimal axial and radial clearances; hydraulic or pneumatic drive
