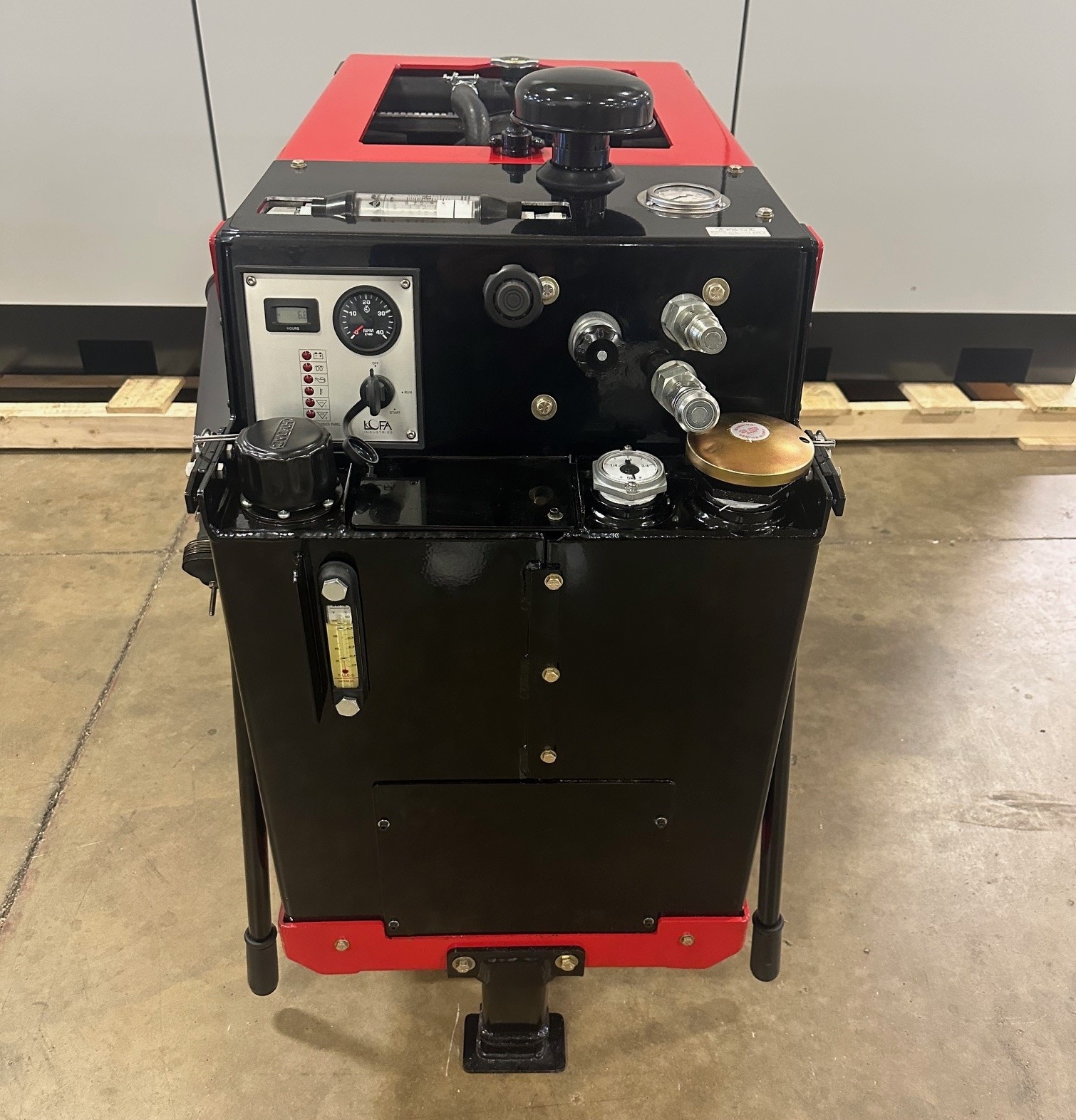

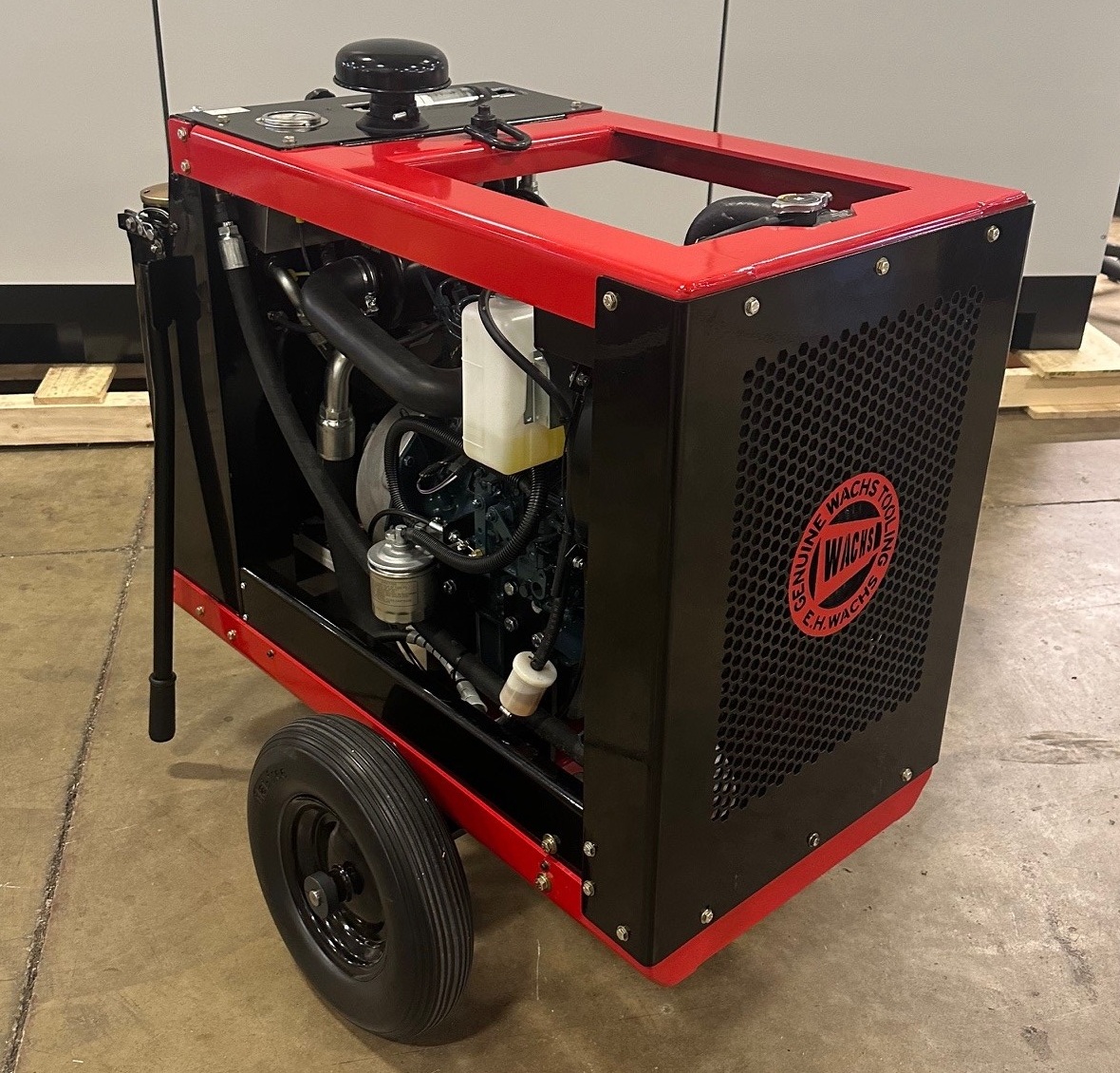

HCM-D25 25HP Diesel Hydraulic Power Unit

Cart mounted 25 HP diesel engine driven hydraulic power unit with electric start, 5.0 Gallon (18.9L) fuel tank, spark arrestor and oil cooler. Rated for 0-15 GPM @ 1800 PSI (0-56.78 LPM @ 124 BAR). Hydraulic system is self-contained with reservoir, filtration and level indicator, ships without fluids.

E.H. Wachs HCM-D25 diesel powered HPU (Hydraulic Power Unit) sets the standard in portable power units. Featuring a Kubota® heavy duty 24.8 horsepower Tier 4 compliant industrial diesel engine, Wachs HCM-D25 is built for long life, and is designed to deliver greater flow and pressure in an easily transportable compact cart mount.

Replacing our HCM-D23, the HCM-D25 builds on the success of the previous unit, with a robust heavy gauge steel powder coated frame, large tires for ease of handling, and liquid cooling for long engine
life. Sturdy handles allow it to be easily positioned, then folded away for storage or operation. All operator controls and connections are centralized for maximum user convenience, including fuel and hydraulic oil fills.

E.H. Wachs portable hydraulic power units are the ideal choice for smooth, reliable hydraulic power, in the shop or in the field. Hydraulic power units (HPUs) pack more power in less space than any other power source, and because the supply is completely sealed they’re the best choice for partial immersion, offshore and subsea use, the desert and other difficult environments. Powered by gasoline, diesel, or electric with your choice of cart, trailer, truck or skid mounting, there’s a unit to fit your exact pressure and flow requirements.

Note the HCM-D25 ships without engine fuel and hydraulic oil.
